TinyLily LED 0402 - AMBER

TinyLily LED 0402 - AMBER

SGD 2.00

Add to cart

20 items in stock


If you need a super Tiny LED – this is it! (Model ASL1001).

More details

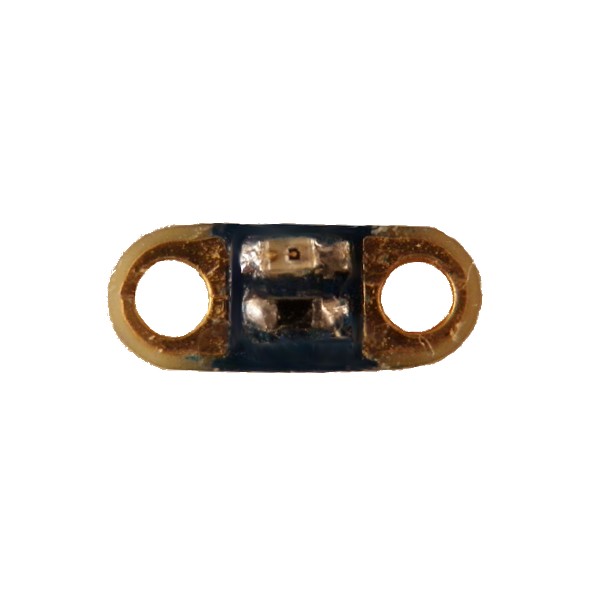

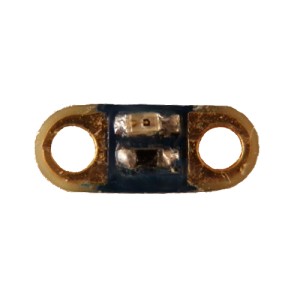

So you want the smallest possible sewable LED for your project? Try out the TinyLily LED 0402 which sports a total size of just 6.5mm x 2.5mm! Yet this tiny little guy still includes standard TinyLily sewtabs and a current limiting resistor, so you don’t have to worry about blowing it up or adding an external resistor. Available with Red, Green and Amber LED color options.


  • - Washable
  • - Two Sewtabs – 1.2mm in diameter, easy to use with standard conductive thread and needles
  • - Robust Gold Finish – makes soldering easy and is non-corrosive
  • - Ultra compact size and weight
  • - Dimensions: 6.5mm x 2.5mm (0.26 inches x 0.1 inches)
  • - Max Height: 1.11mm (0.044 inches)
  • - Ultra-thin 0.61mm (0.024 inches) PCB
