TinyLily Mini USB Adapter

SGD 22.00

Add to cart

3 items in stock

ASL2111

For Connecting Your Computer to the TinyLily Mini (Model ASL2111).

More details

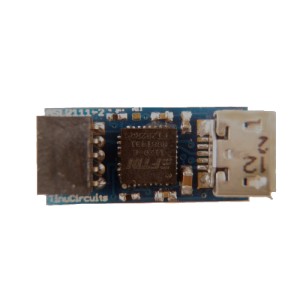

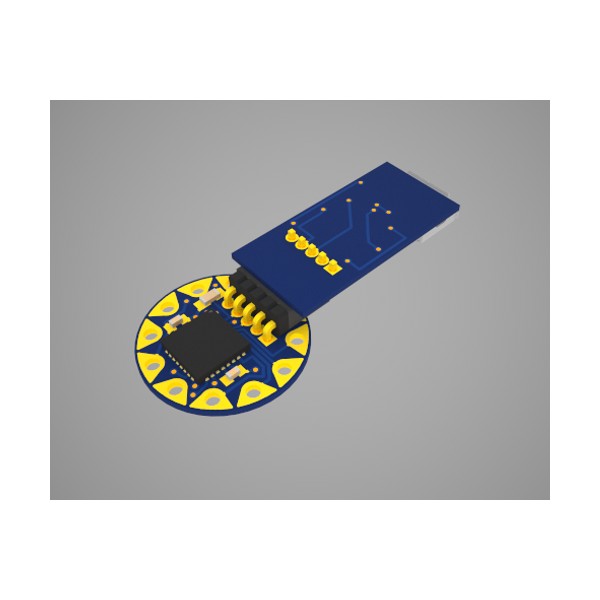

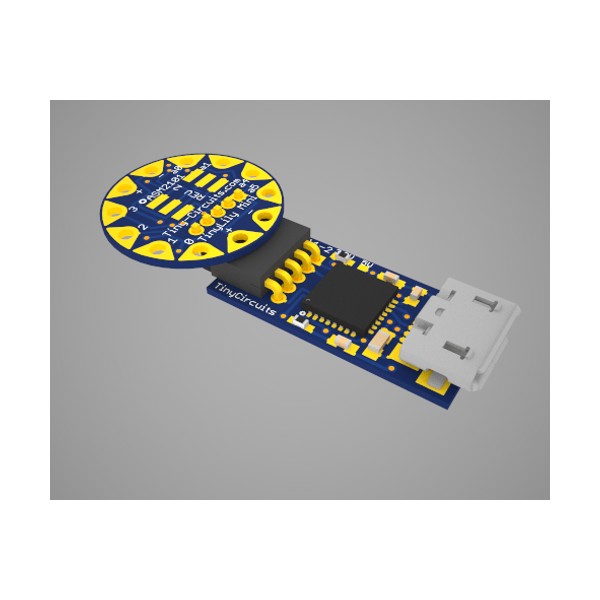

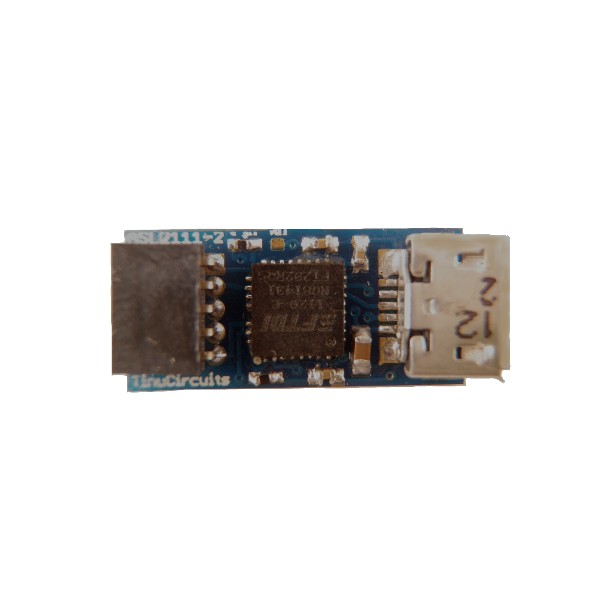

The TinyLily Mini USB Adapter adds USB support for the TinyLily Mini via a micro-USB connector and a small 5-pin plug in connection to the TinyLily Mini and uses the very popular FTDI USB to Serial converter IC (as used on most standard Arduino models). Using this board allows you to download new sketches via the Arduino IDE to your TinyLily Mini, and also allows you to add USB communication capabilities to your projects.

This board also uses the DTR line from the FTDI IC to support the auto-reset function when a new sketch is downloaded to the processor – eliminating the need a reset button on the TinyLily Mini.

Power is also supplied from this board to the TinyLily Mini, and there is a resistor jumper option on the board to select either 5 Volts or 3.3 Volts (this is set to 3.3V by default).

Click on the following link to download the drivers direct from FTDI: Download Drivers


Specifications

  • FTDI based USB Com port
  • Micro-USB Receptacle
  • Washable
  • Robust Gold Finish – makes soldering easy and is non-corrosive
  • Ultra compact size and weight
  • Dimensions: 19mm x 9mm (0.75 inches x .354 inches)
  • Max Height: 3.35mm (0.132 inches)
  • Ultra-thin 0.61mm (0.024 inches) PCB
  • Weight: TBD grams (TBD ounces)
