TinyShield Proto Board 2 - Model ASD2003

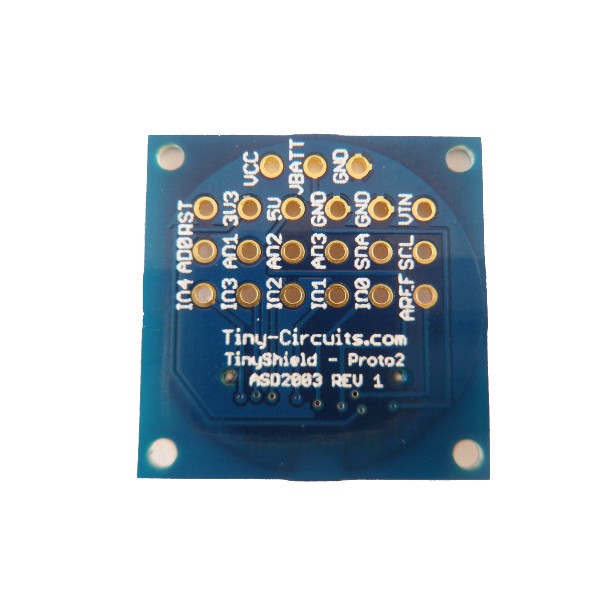

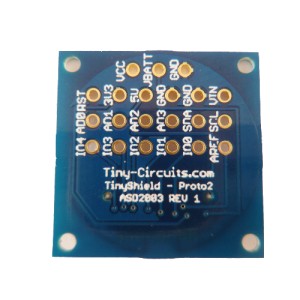

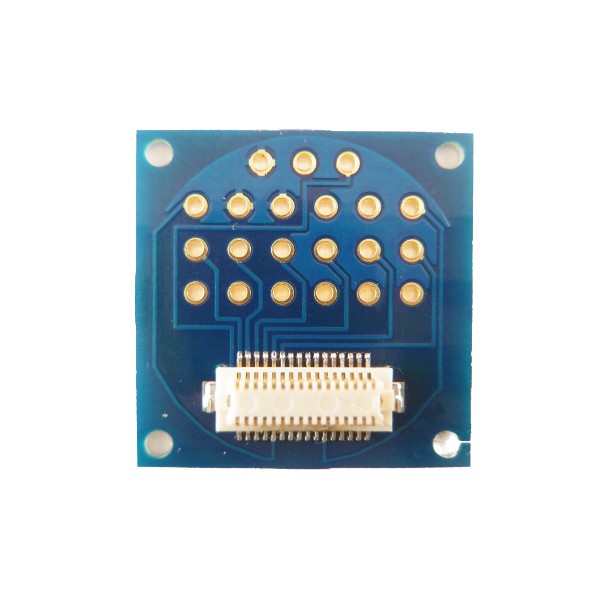

This proto board brings many of the TinyShield signals out to a point that you can solder to. All of the signals are marked and are spaced with 0.1″ spacing (same spacing as on the standard Arduino Uno), so a standard 0.1″ header can be used if desired.

Note: Be sure to check the specifications to make sure this board has the TinyShield signals you need. Also check Proto Board 3 to see if the signals it supplies meet your project needs. If you need every TinyShield signal on one board (although with smaller spacing), use Proto Board 1

Includes the following signals:

• VCC
• VBATT
• +3V3
• +5V
• VIN
• GND
• RESET
• IO0
• IO1
• IO2
• IO3
• IO4
• AREF
• AD0
• AD1
• AD2
• AD3
• AD4/SDA
• AD5/SCL
