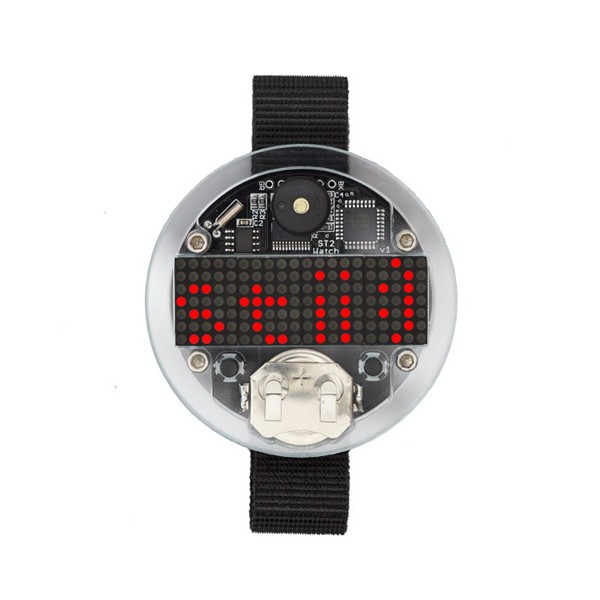

Solder:Time II ™ Watch Kit

The Solder : Time II has a much more impressive display. Four 5x7 LED matrix modules gives you control of a 7x20 matrix for a total of 140 LEDs!

The new LED matrix allows for an amazing amount of information to be displayed; time, date, month, words, scrolling messages, graphics, special characters ... the possibilities are endless. The ST2 also has a piezo buzzer for the alarm. You can also use it to add sounds to you custom programming or even games!

Features:

• Come pre-programmed with the new v1.1 firmware.
• It's an "Arduino" easy to hack / reprogram
• Unique conversation starter
• Display is made of four 5x7 LED matrix modules (Total 140 pixels)
• Two button interface
• Display Text, time, numbers, graphics etc ...
• Create graphic animations and scrolling text
• On board full size (.1" spacing) FTDI style header for reprogramming
• ATmega serial port (TX & RX) not used by the watch circuit, available to interface accessories
• Low power sleep mode
• Self-contained; battery, circuits and displays all contained in watch body
• Stylized laser cut clear acrylic watch body

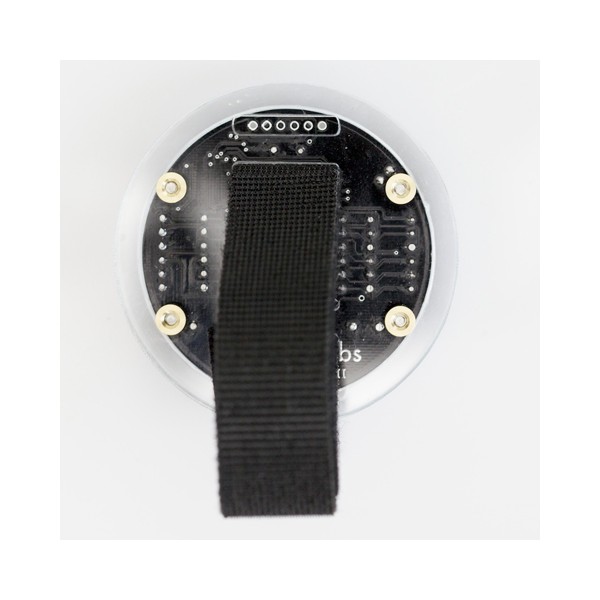

• One size fits all velcro wrist band
• Dallas 1337S+ Real time clock (RTC)
• Hours, Minutes, Seconds
• Year, Month, Day, Day of week
• Two separate Alarms possible
• Piezo alarm buzzer
• SMT parts come pre-assembled, tested and programmed

Includes:

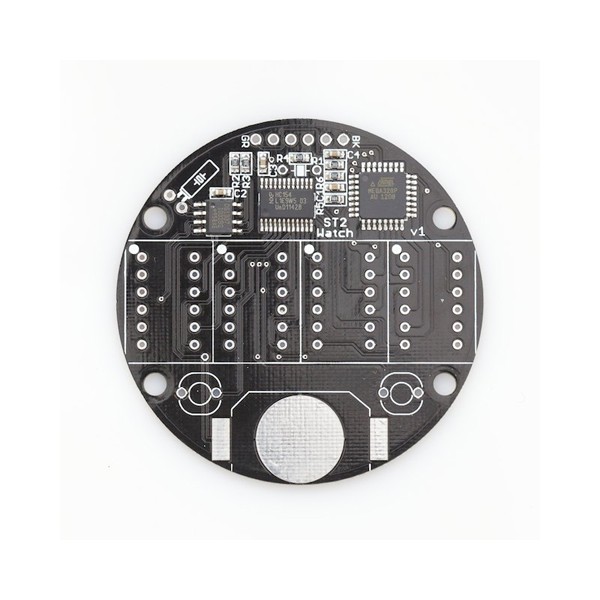

• Solder : Time II PCB with SMD (surface mount parts) assembled and tested.
• 4x 5x7 LED Matrix
• Buttons
• Piezo
• Clock crystal
• Screws
• Laser cut acrylic watch housing
• Velcro wrist strap
• Battery
• Battery holder

Tools & Supplies required:

• Soldering Iron
• Solder
• Flush Cutters

Documentation:

• Instructions Page
• Interface Menu Map
• NEW Solder : Time II Arduino Sketch v1.1
• Solder : Time II Schematic

Required for reprogramming: Timer1 Arduino Library
