Besides using relays, you could also use tRIO a board design by 3E Gadgets which had 8 High power MOSFET channels for controlling these LED strips. tRIO uses Arduino ATMega328 which allows you to use the Arduino IDE. You can download the IDE here.

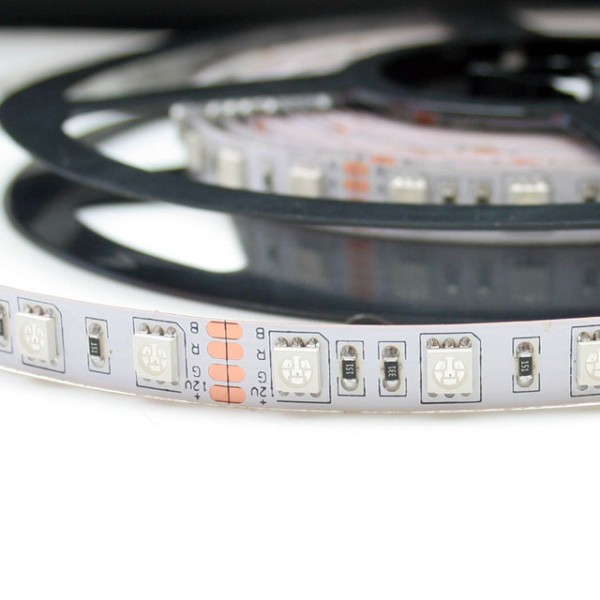

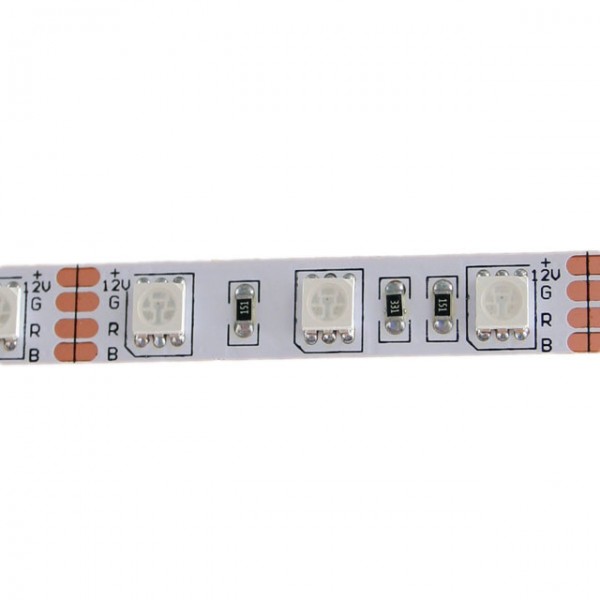

The LED strips uses 12VDC, which is the common for the red, green and blue LED. To turn the light, just connect the respective pin to GND (0V). Example to turn on red, connect the 'R' input/pad to ground.

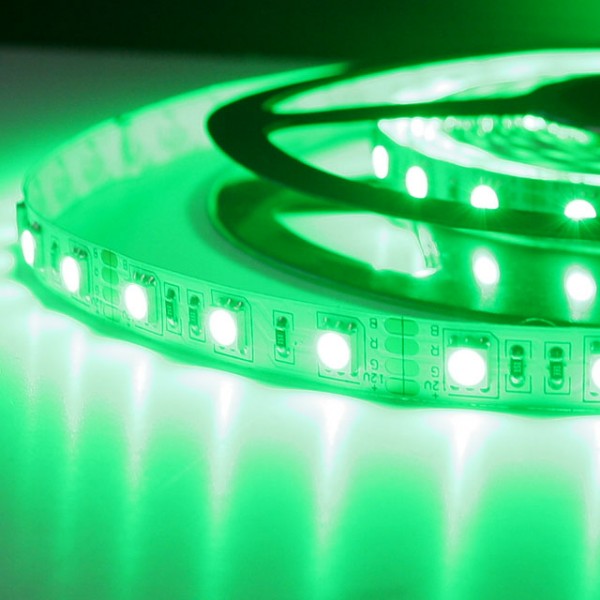

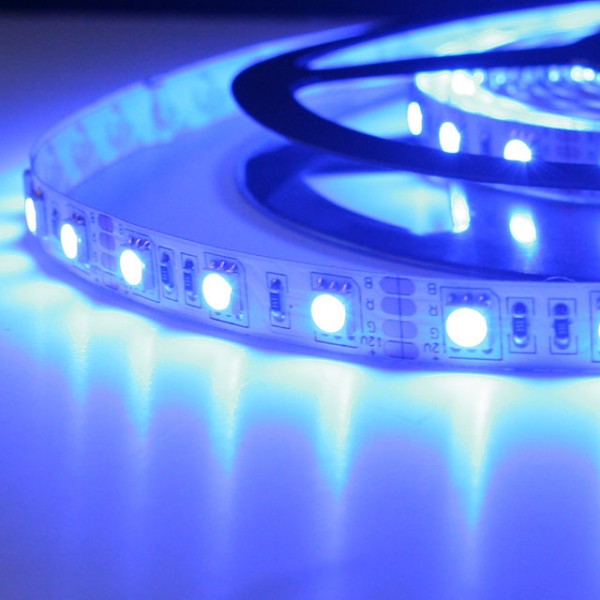

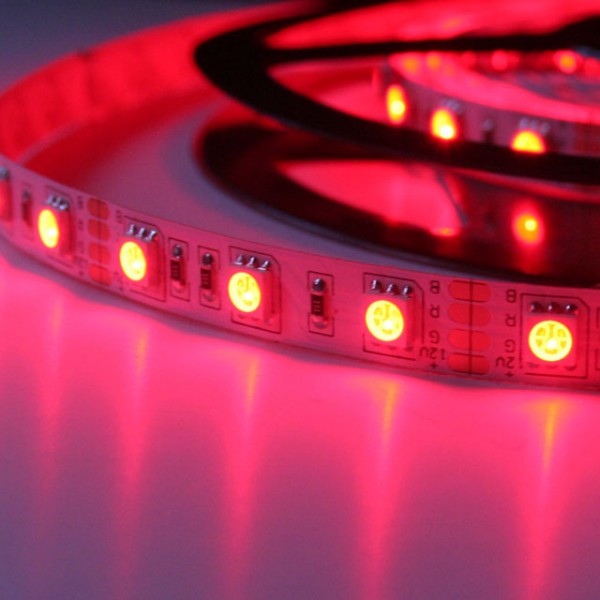

With RGB LED strips, you could create all sort of color light by mixing the different RED, GREEN and BLUE intensity (brightness). This can be easily done using Arduino with some simple MOSFET circuit or simply use our tRIO to do it. Stay tune to our blog as we will be publishing some tutorial on this soon.
These strip can be used with our RF remote controller to allow you to display with different colors and different preset modes of lighting effects. Example, fading from one color to another.
We are selling this strips in meters. Price stated in per meter.
