LCD 16x2 Characters with Green backlight

SGD 12.00

Add to cart

7 items in stock

BT018

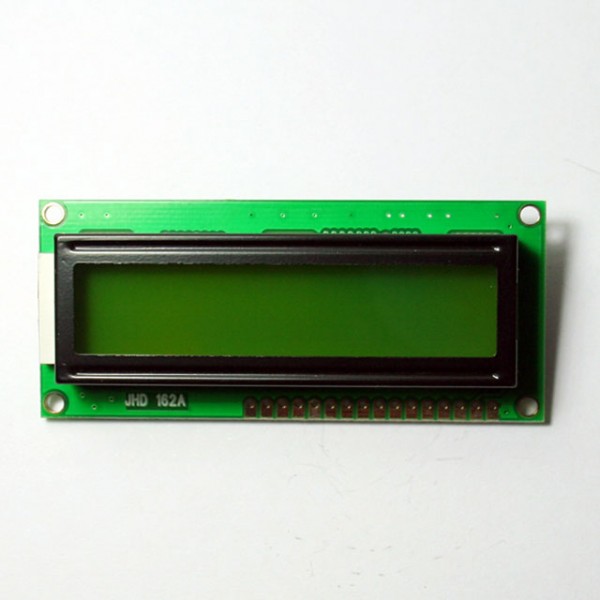

LCD with 16 characters and 2 rows display. Comes with  green backlight.

More details

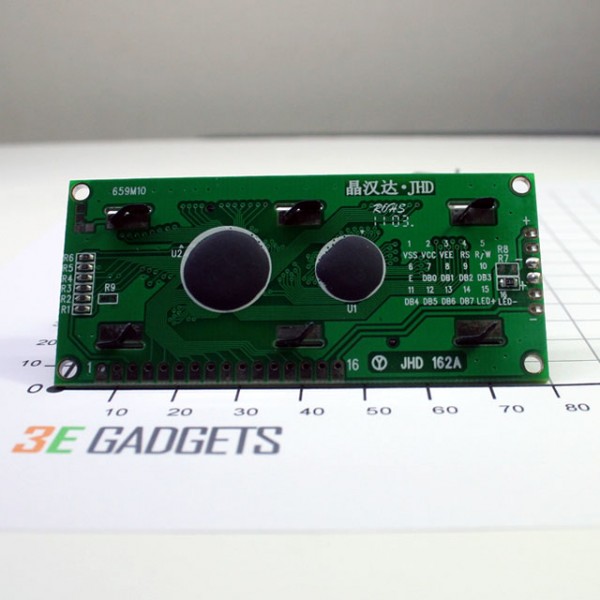

Pin Layout:

Pin Layout - Zoom in

This is the typical 16x2 LCD. It uses the standard HD44780 Hitachi LCD controller chip.

• 16 characters wide, 2 rows
• Black text on green background
• Pins are documented on the back of the LCD to assist in wiring it up
• Built in character set supports English/Japanese text, see the HD44780 datasheet for the full character set
• Up to 8 extra characters can be created for custom glyphs or 'foreign' language support

You can read more about Hitachi HD44780 LCD controller at this Wiki link.
http://en.wikipedia.org/wiki/Hitachi_HD44780_LCD_controller

  • Control Levels TTL
  • Height 14 mm
  • Input Voltage 5 VDC
  • Length 80 mm
  • Width 36 mm
  • HD44780.pdf
    Hitachi HD44780 LCD controller datasheet and programming reference.
