MicroSD card breakout board+

SGD 22.00

ADA-254

Availability: This product is no longer in stock

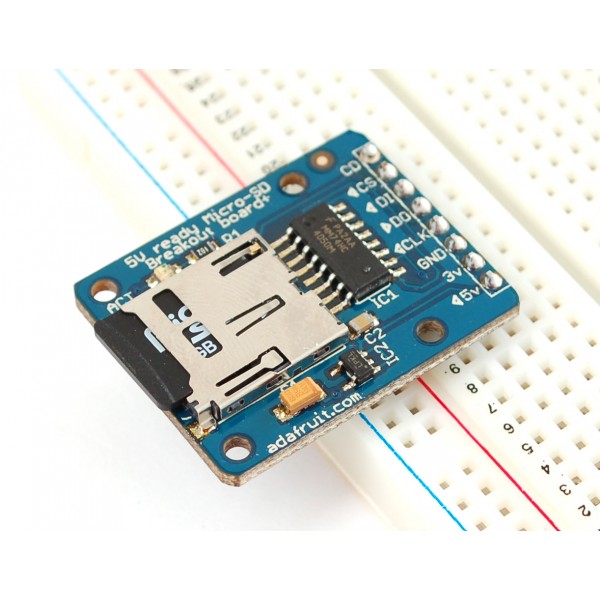

Not just a simple breakout board, this microSD adapter goes the extra mile - designed for ease of use.

  • Onboard 5v->3v regulator provides 150mA for power-hungry cards
  • 3v level shifting means you can use this with ease on either 3v or 5v systems
  • Uses a proper level shifting chip, not resistors: less problems, and faster read/write access
  • Use 3 or 4 digital pins to read and write 2Gb+ of storage!
  • Activity LED lights up when the SD card is being read or written
  • Four #2 mounting holes
  • Push-push socket with card slightly over the edge of the PCB so its easy to insert and remove

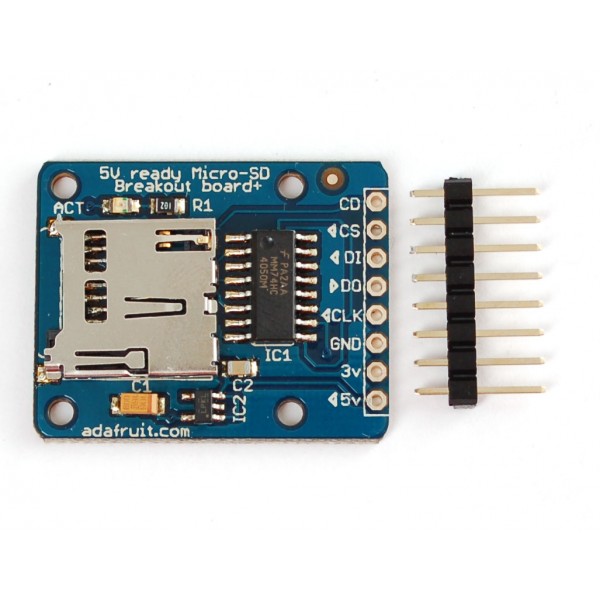

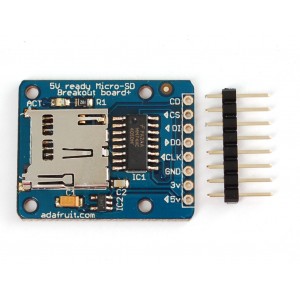

  • Comes with 0.1" header (unattached) so you can get it on a breadboard or use wires - your choice
  • Tested and assembled here at the Adafruit factory
  • Works great with Arduino, with tons of example code and wiring diagrams

To use with an Arduino, connect GND to ground, 5V to 5V, CLK to pin 13, DO to pin 12, DI to pin 11, and CS to pin 10. Then you can use the wonderful SDfatLib which supports FAT and FAT32 SD cards. For details on getting started, check out our detailed tutorial discusses microSD cards, wiring and how to use this breakout board with an Arduino

Our detailed tutorial discusses microSD cards, wiring and how to use this breakout board with an Arduino

netduino driver, netduino sample and Documentation parts one and two.

The files and schematic can be download from here.


Tutorials on the Adafruit Learning System featuring this product:
2.8" TFT Touchscreen
320x240 pixels in 16 bit color with a touchscreen
TTL Serial Camera
Snap, Snap!
  • Height 3.75mm (0.15 in)
  • Length 31.85mm (1.25 in)
  • Remarks Dimension without header
  • Weight 43g
  • Width 25.4mm (1.0 in)
