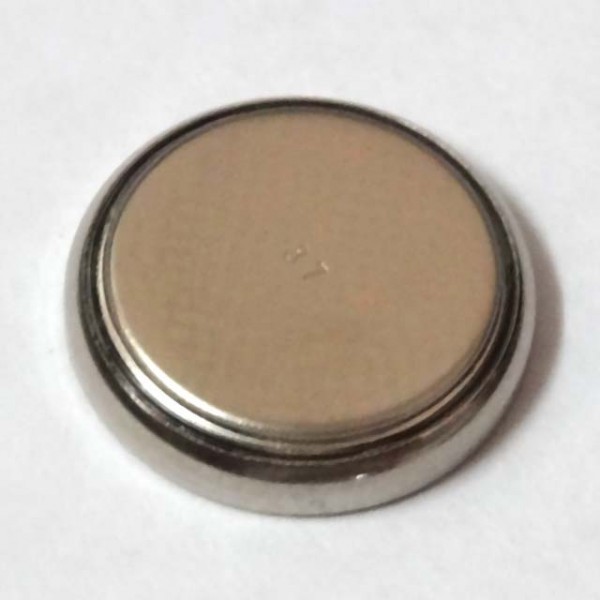

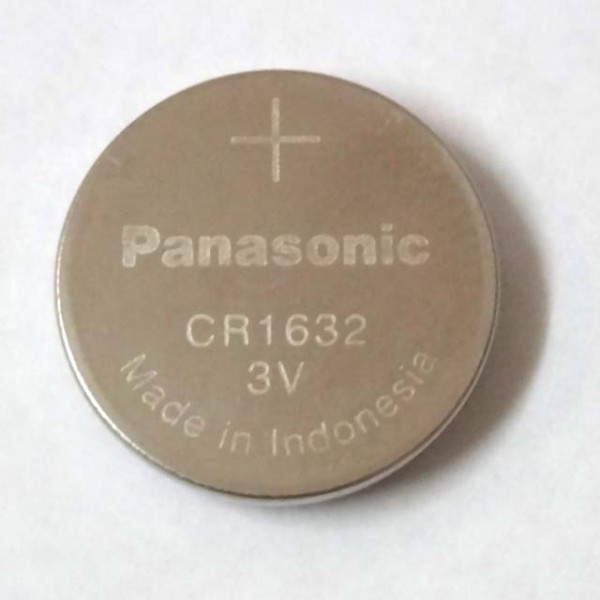

CR1632 Coin Type Lithium Battery

CR1632 is part of the CR series.  The CR series uses a manganese dioxide lithium chemistry which can handle applications requiring high voltage and strong load pulse needs.

Features of CR1632

• - High 3 Volt voltage.
• - Excellent shelf life, extremely small self discharge for long service.
• - Wide temperature operating range 30 degrees C to 60 degrees C.
• - Small, compact, lightweight.
• - Strong load pulse characteristics.

Technical Specifications

- Nominal Voltage: 3V

- Nominal Capacity: 140 mAh

- Continuous Drain: 0.10 mA

- Diameter: 16 mm

- Height: 3.2 mm

- Weight: 1.8g

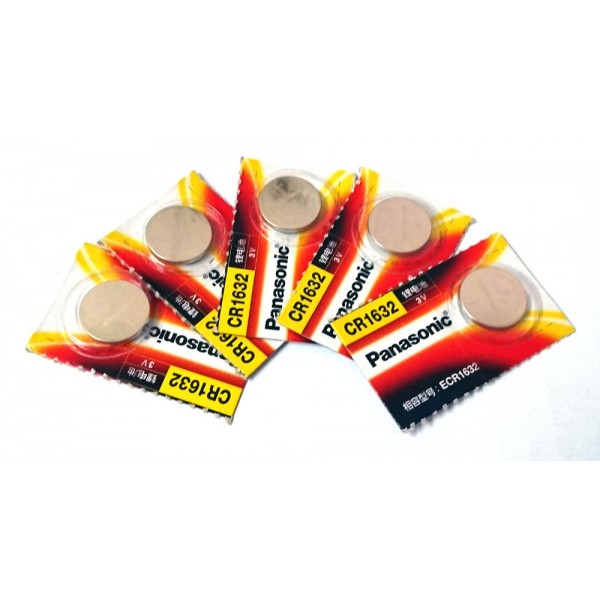

This battery is good to use for TinyDuino products. This battery is sold in a set of 5 pieces.
